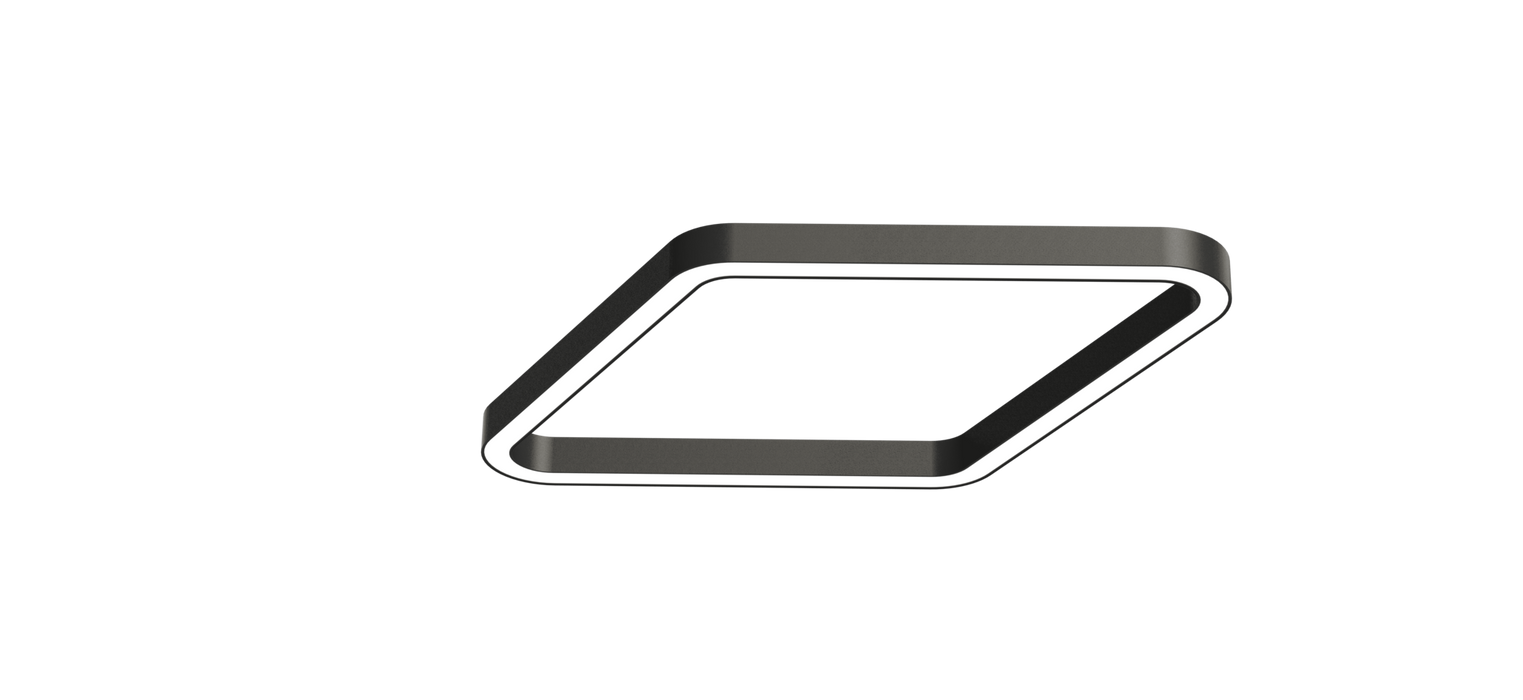

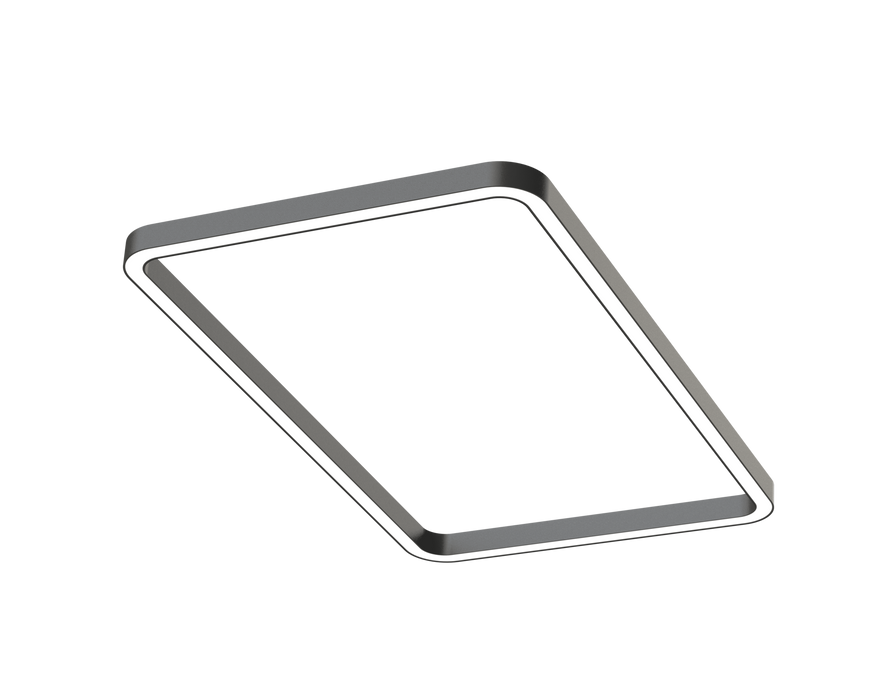

Bring a clean, structured lighting feature to indoor spaces with the APL58 Series Sharp Rectangle LED Light. Measuring 2087x966 mm, this 197W integrated LED fitting pairs a defined rectangular form with a slim 58 mm-wide aluminium and polycarbonate profile.

The APL58 slicing system connects in under two seconds and is designed to prevent light leakage. Its modular rectangular format can be adjusted flexibly, making it easy to assemble configurations like building blocks.

Choose 3000K, 4000K or 5000K colour temperature in single-colour or three-colour-switch options, with adjustable output power. The fitting delivers 100–115 lm/W efficiency, CRI 90 and SDCM 3, with either a 108° opal or 90° prismatic beam angle.

Compatible with on/off, DALI, 1–10V, RGB/RGBW, Casambi, Silvair, emergency and sensor-ready control options, the IP20-rated APL58 is designed for indoor use. Available in white, black or a customised finish, it includes four suspension-kit sets and 10 joint plates. A 5-year replacement warranty is included.

Technical Specifications:

- Overall Size:  Length: 2087 mm; Width: 966 mm
- Profile Size: Width: 58 mm; Height: 74 mm
- Slicing: Ultra-fast connection in under 2 seconds; light-leakage-free.

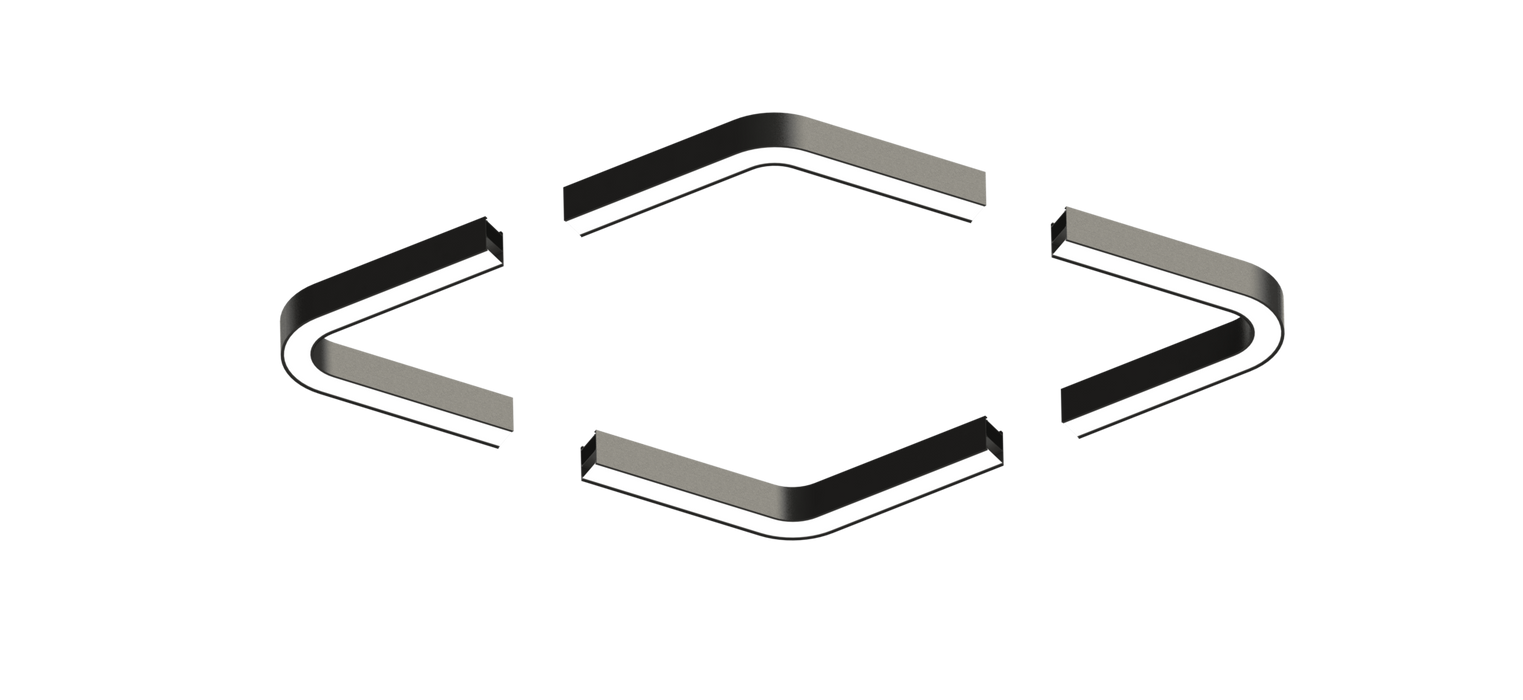

- Flexibility: The overall size of the rectangle can be adjusted flexibly, as easy as assembling building blocks
- Control compatibility: on-off, DALI, 1-10v, RGB/RGBW, Casambi, Silvair, Emergency, Sensor-ready.
- Performance: Selectable CCT and adjustable output power.
- Continuous Run: Up to 40m per roll opal or prismatic optic).
- Operating Voltage: 220-240V
- GlobeBase: Integrated LED
- Wattage: 197W
- Colour Temperature: 3000 K | 4000 K | 5000 K (Single Colour or Three Colour Switch）
- Efficiency: 100-115 LM/W
- BeamAngle: 108°(Opal) | 90°(prismatic)
- CRI:90
- SDCM:3
- Colour(in finish): White| Black or Customized
- Dimmable: Yes
- IP Rating: IP20
- Power factor: 0.9
- Watts per AC cable: 600W
- Linkable inside cable: HO5VV-F+ 20AWG
- Usage: Indoor
- Material: Aluminium-Polycarbonate
- 5-year replacement warranty
- Included Accessories: 8 sets of suspension kits (2 pcs/set), 16 pcs of Joint plates
