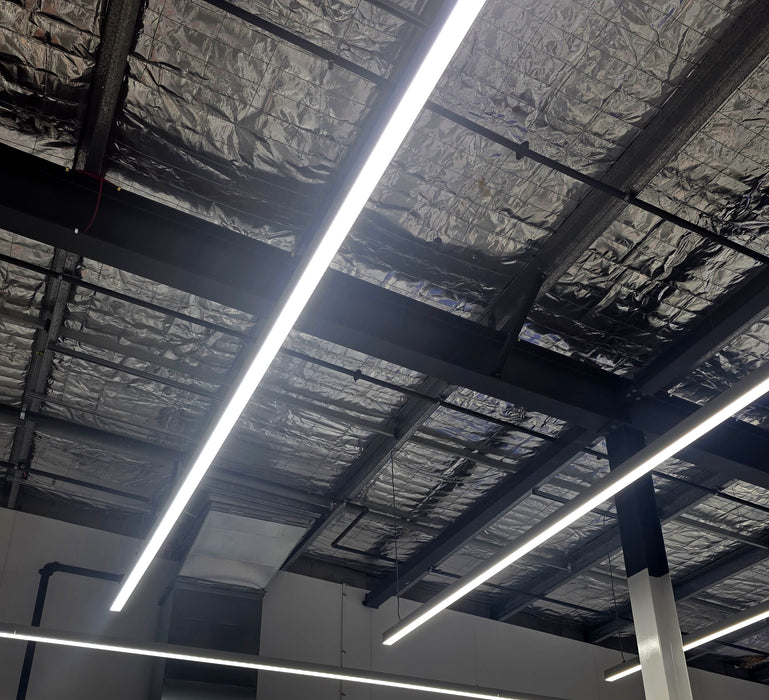

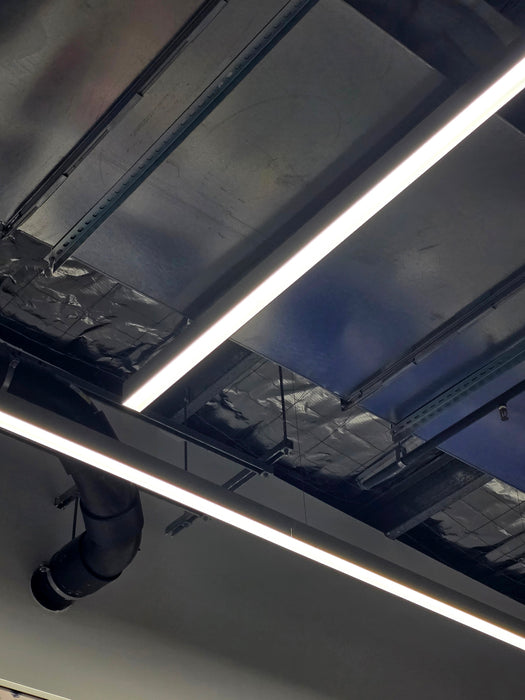

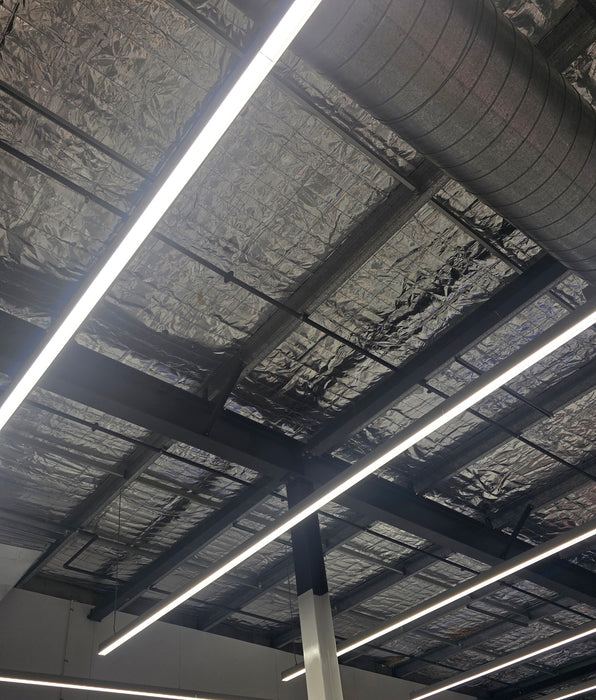

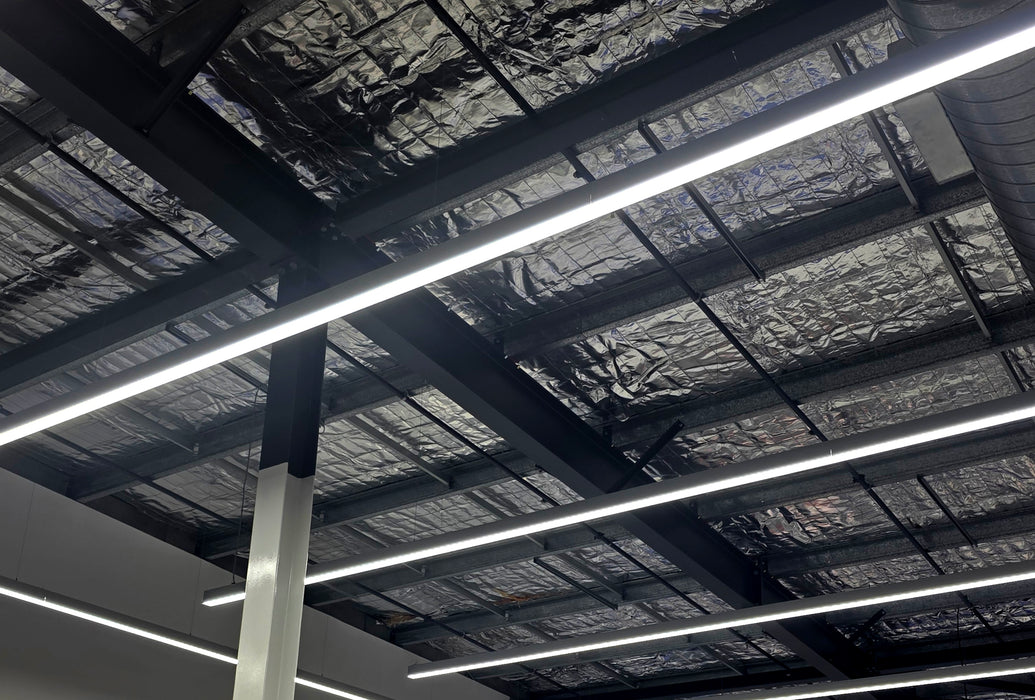

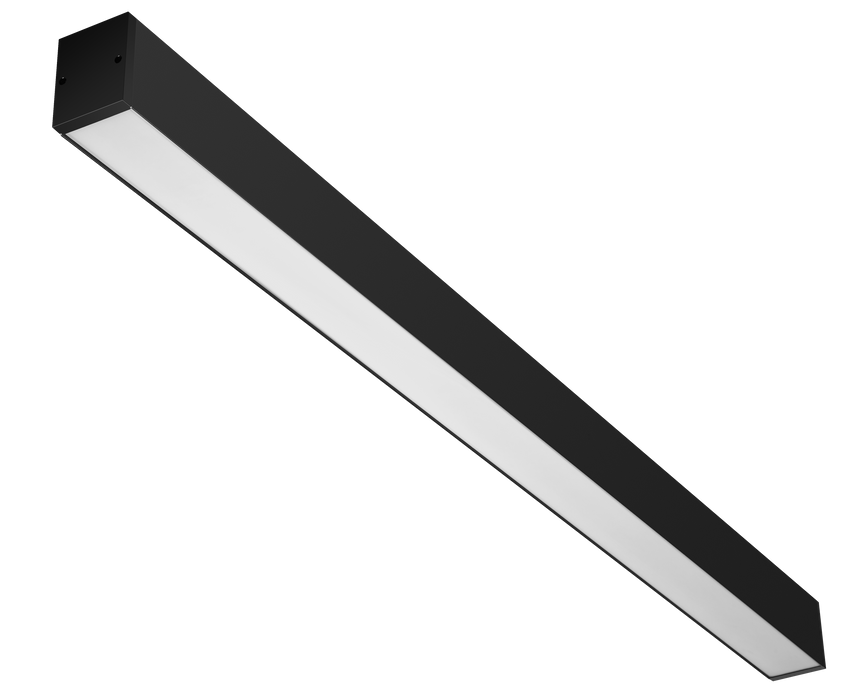

Build a clean, continuous lighting layout with the APL58 Series Straight 1 LED Linear Light. Measuring 7006 mm long, this 225W integrated LED fitting combines a slim 58 mm-wide aluminium and polycarbonate profile with a modular system for adaptable indoor installations.

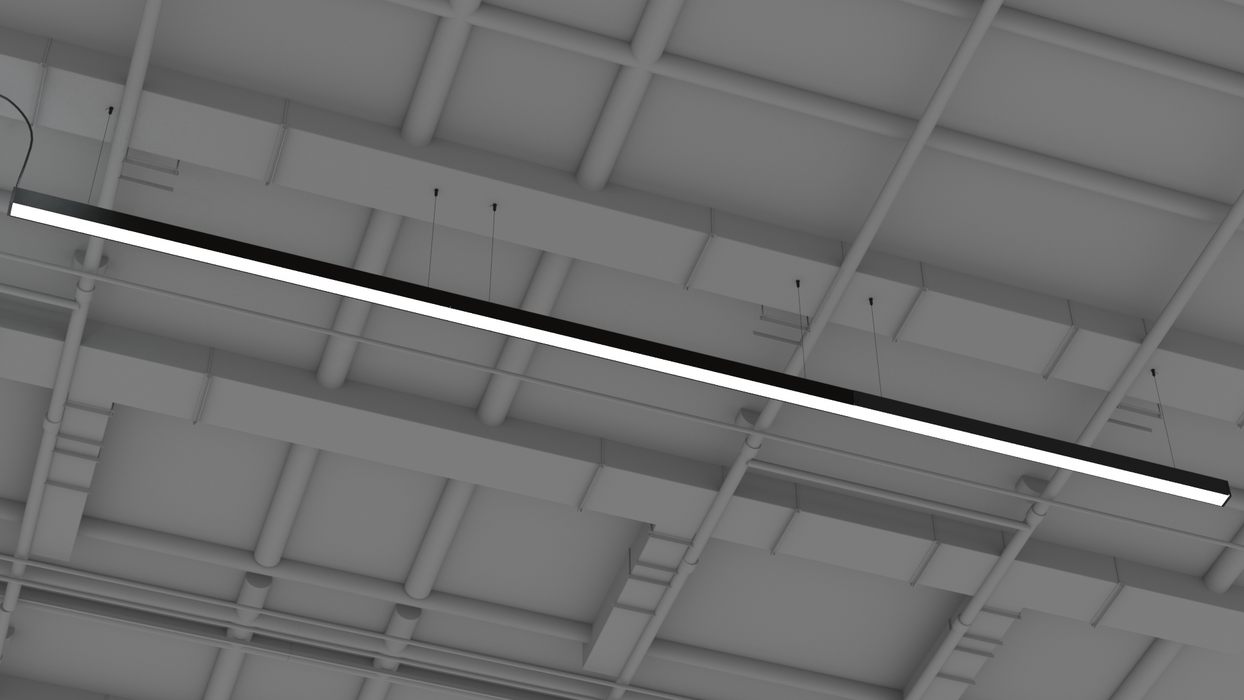

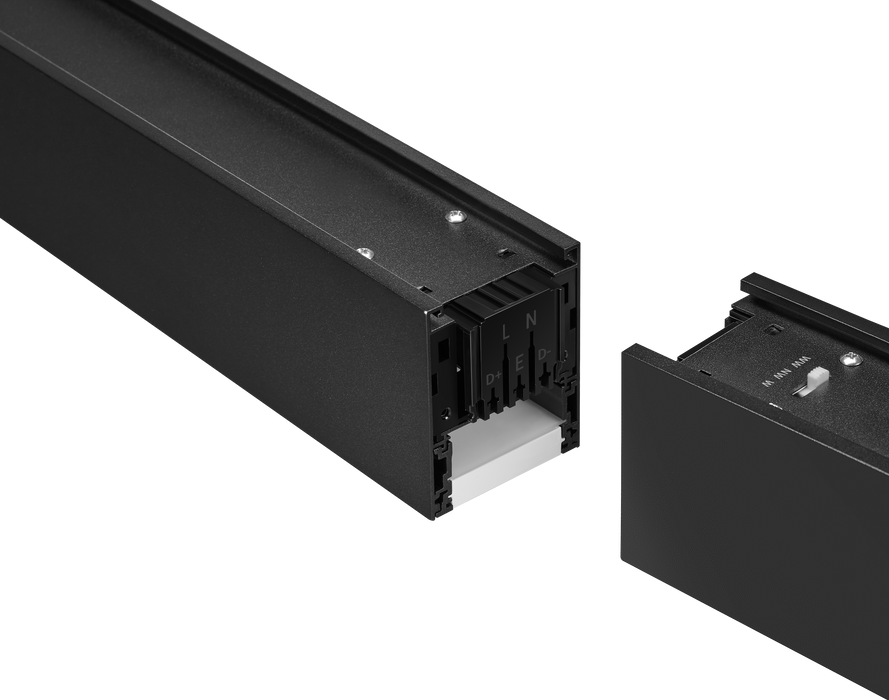

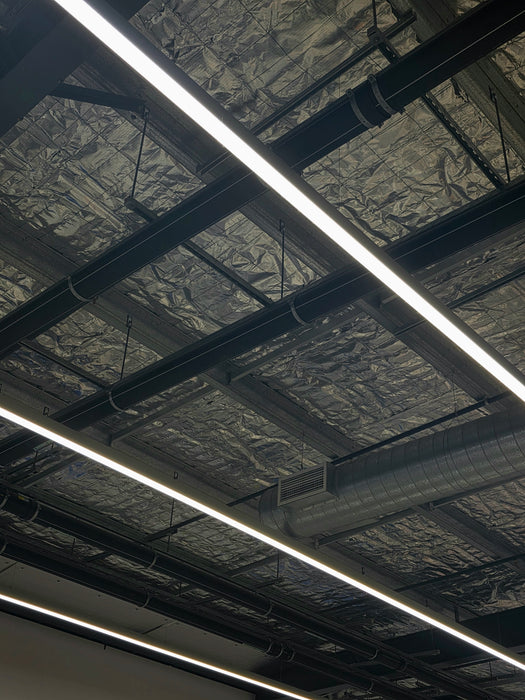

The ultra-fast slicing connection joins in under two seconds and is designed to prevent light leakage. End-feed AC power supports up to 600W for a clean installation, while the system can run continuously for up to 40 m with opal or prismatic optics.

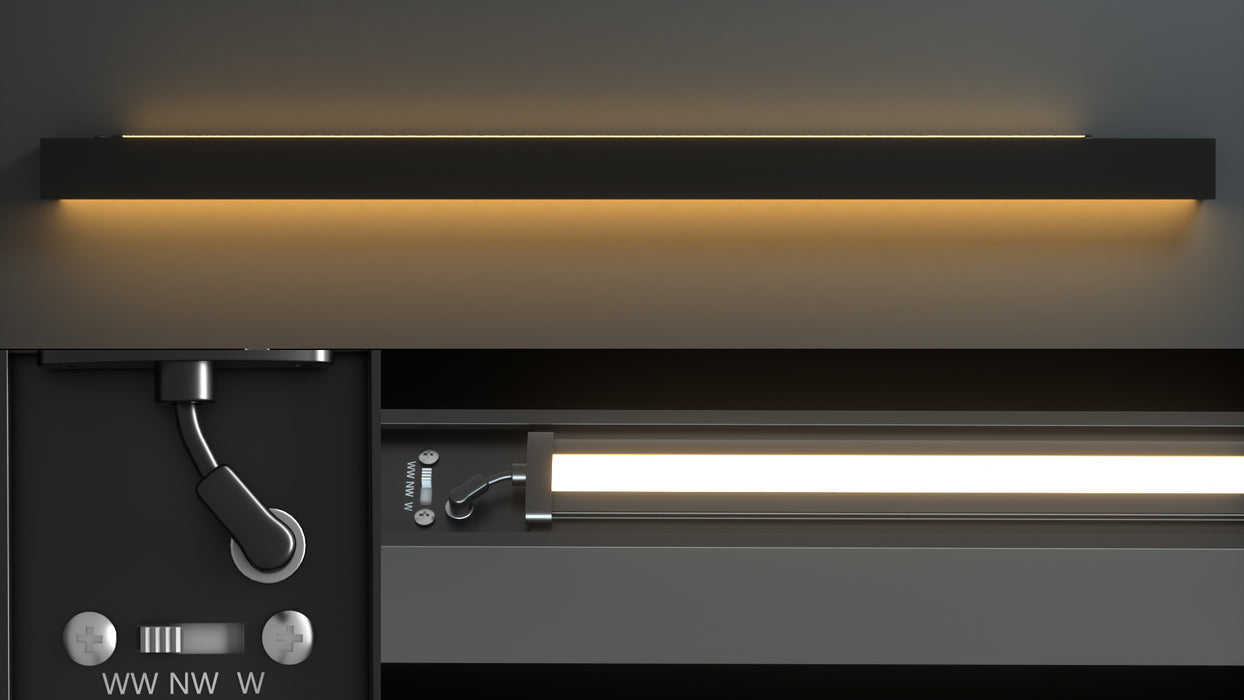

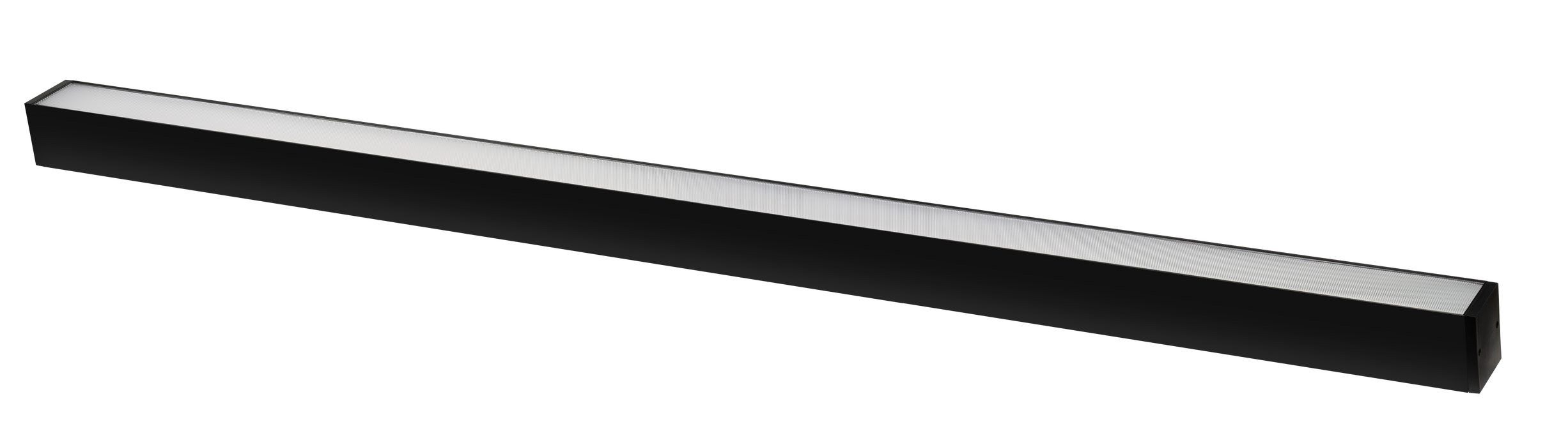

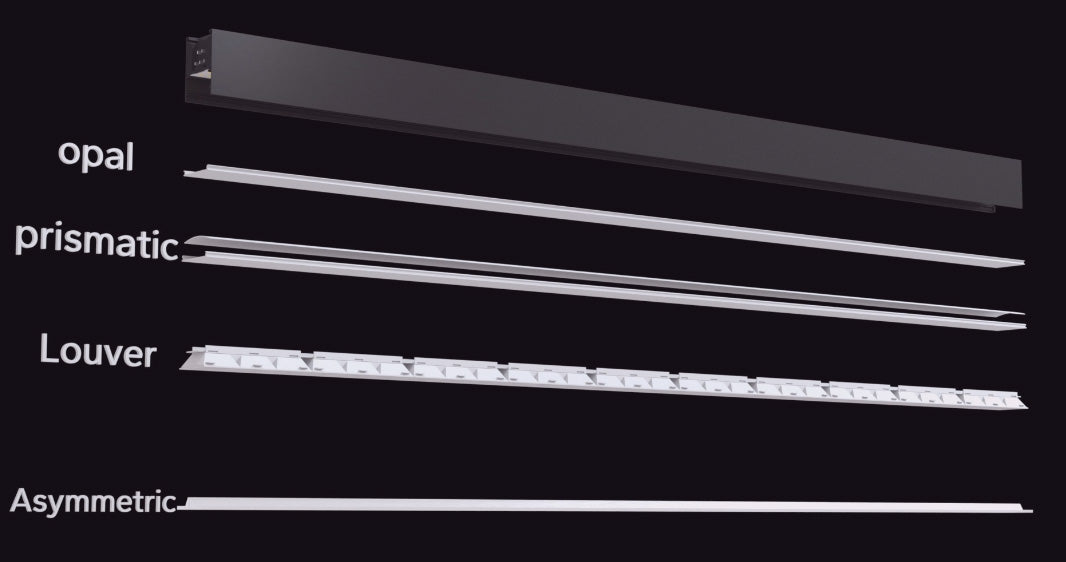

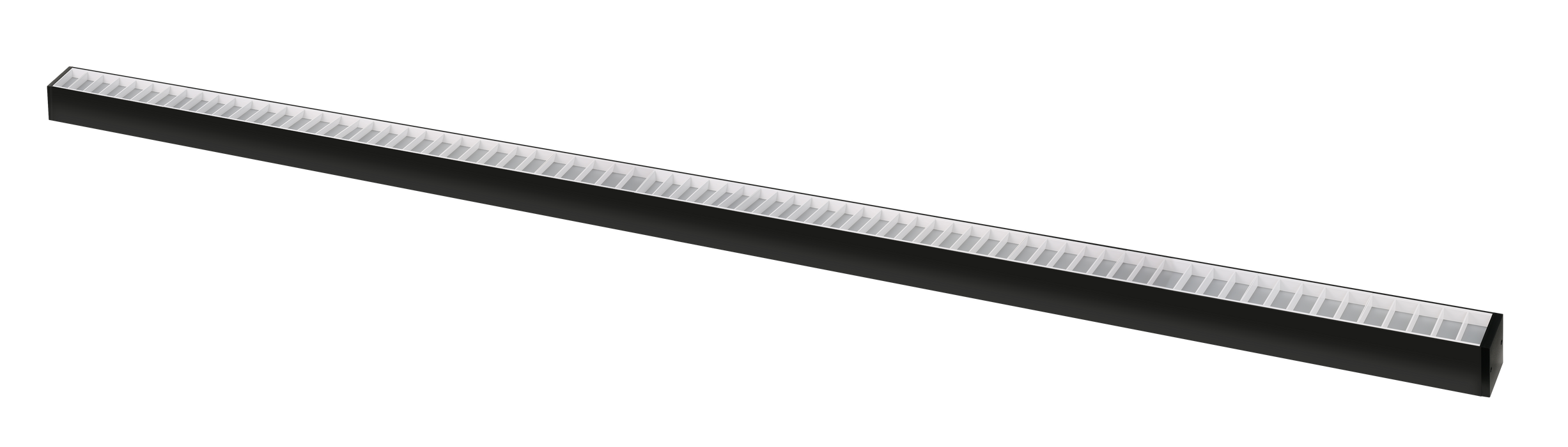

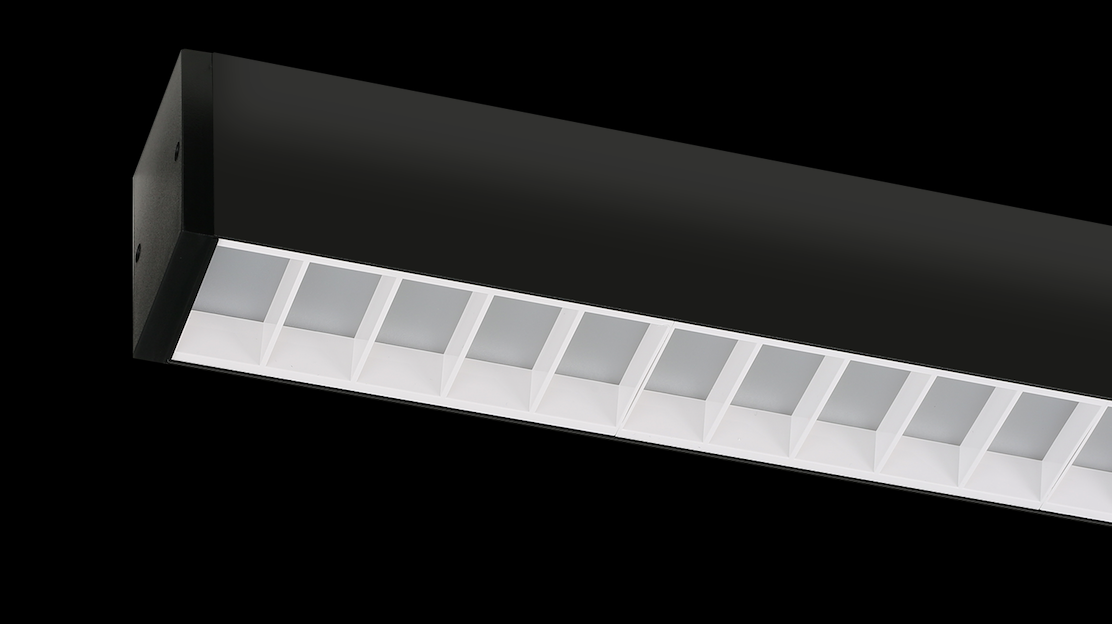

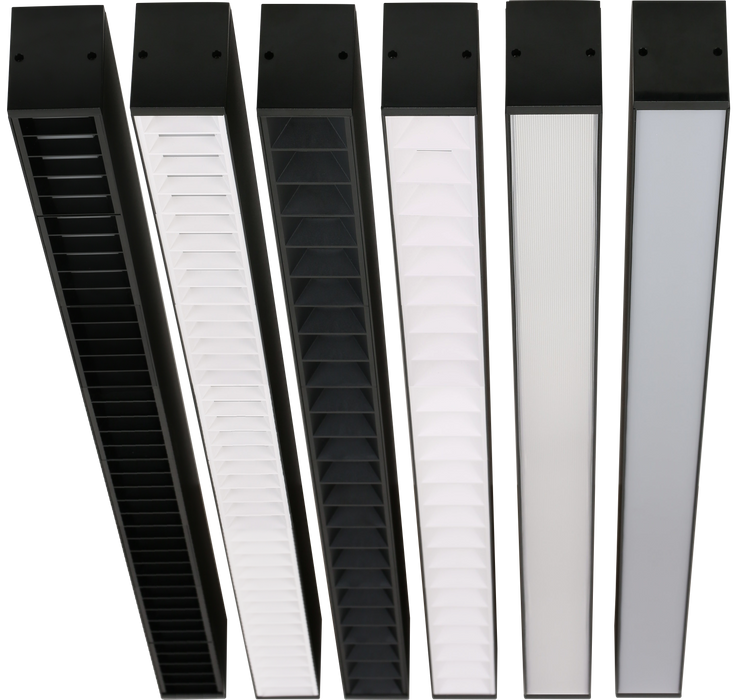

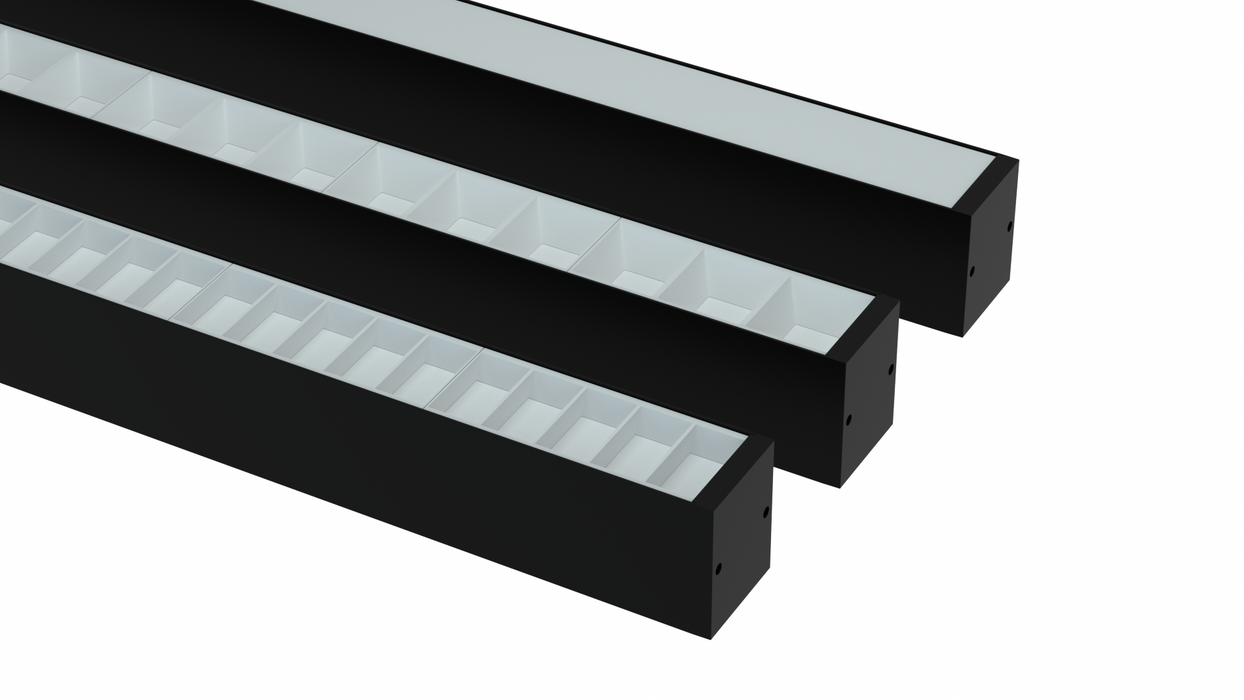

Choose tool-free interchangeable prismatic, opal or louvre optics, plus 3000K, 4000K or 5000K colour temperature in single-colour or three-colour-switch options. The fitting provides 105–115 lm/W efficiency, CRI 90 and SDCM 3, with adjustable output power.

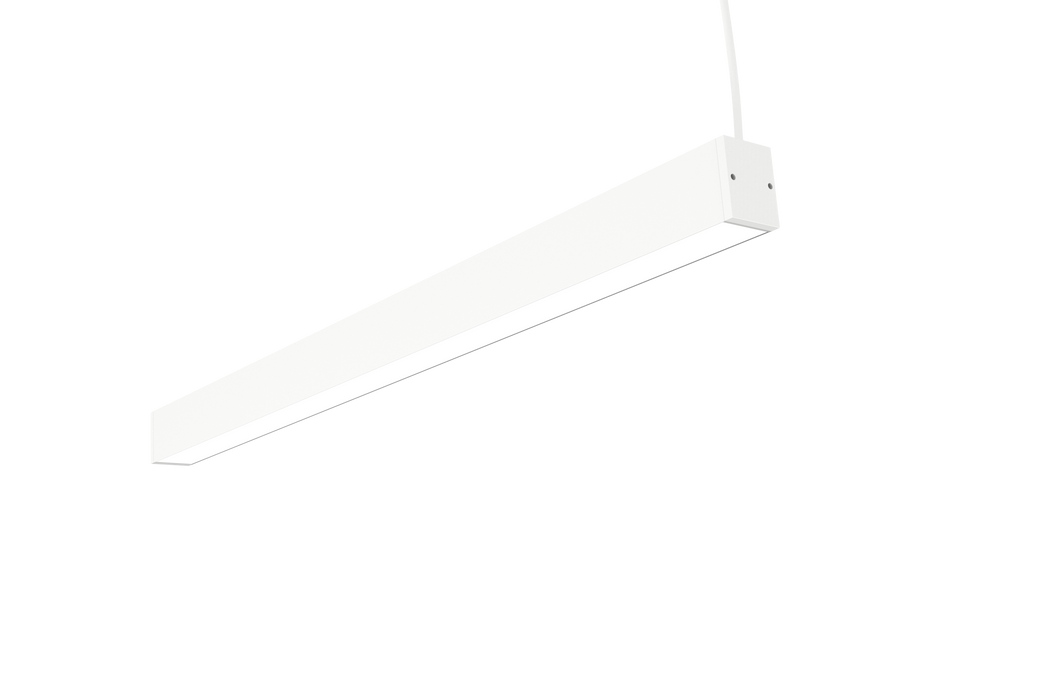

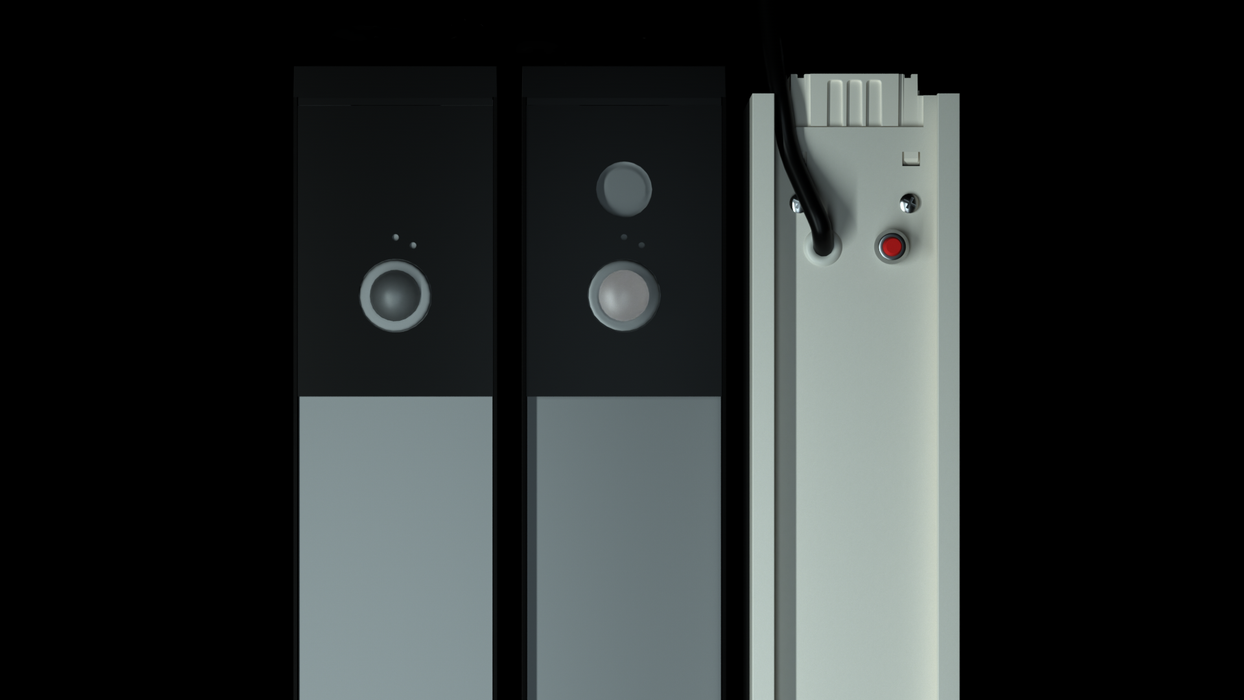

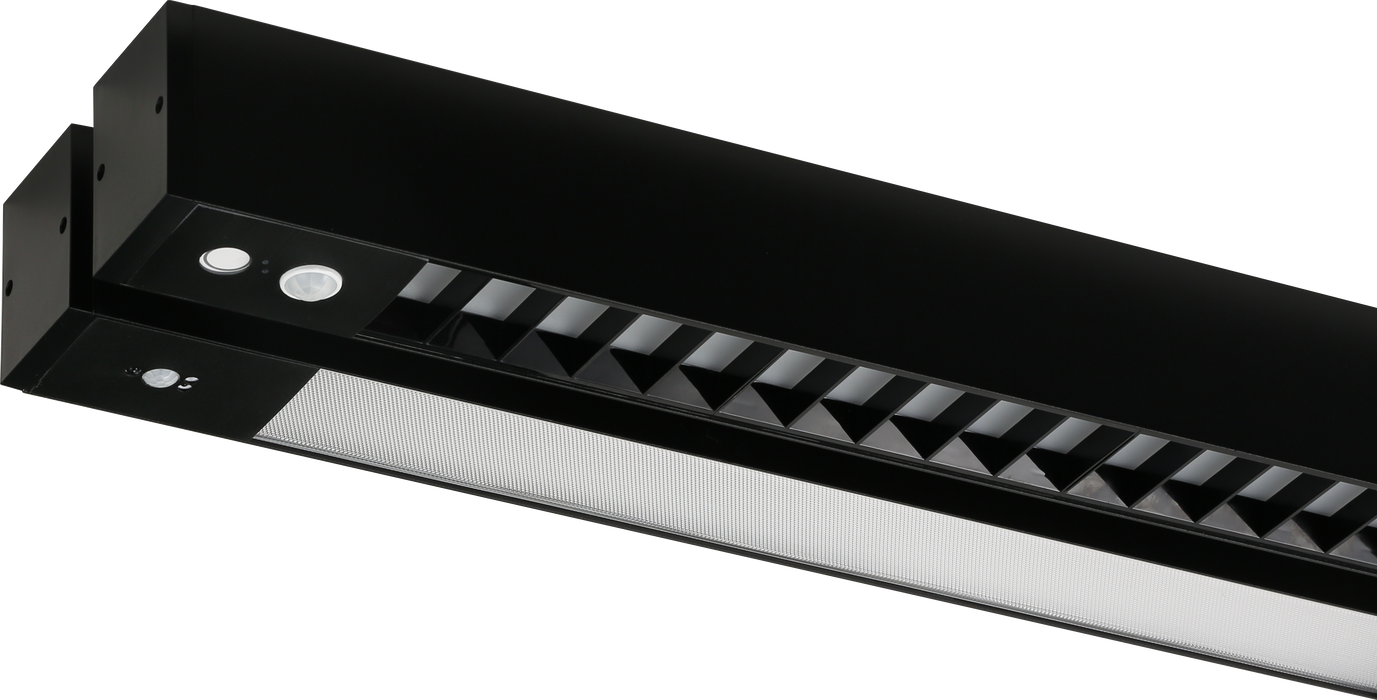

Configure the system with L, T, X and bent-angle corners in standard 90° or custom angles. Mounting options include suspended, surface-mounted, wall-mounted and slat integration. Slide-in uplight, spot, blank and sensor modules are also supported.

Compatible with on/off, DALI, 1–10V, RGB/RGBW, Casambi, Silvair, emergency and sensor-ready control options, the IP20-rated APL58 Straight 1 is designed for indoor use. Available in white, black or a customised finish, it includes an AC cable, end caps, suspension kits and joint plates. A 5-year replacement warranty is included.

Technical Specifications

- Dimensions: 7006 mm long × 58 mm wide × 74 mm high
- Operating voltage: 220–240V
- Light source: Integrated LED
- Wattage: 225W
- Colour temperature: 3000K, 4000K or 5000K
- Efficiency: 105–115 lm/W
- Beam angle: 108° opal, 81° prismatic or 91° louvre
- CRI: 90
- SDCM: 3
- Dimmable: Yes
- IP rating: IP20
- Power factor: 0.9
- Maximum continuous run: Up to 40 m with opal or prismatic optic
- Maximum load per AC cable: 600W
- Linkable internal cable: HO5VV-F+ 20AWG
- Material: Aluminium and polycarbonate
- Use: Indoor
- Warranty: 5-year replacement warranty
- Included accessories: 1 AC cable; 2 end caps; 3 suspension-kit sets, 2 pieces per set; 7 joint plates
